Model: Toilet with elevated cistern and chain attached to lever of discharge valve.
Accelerometer position: the accelerometer is clamped to the cistern pipe close to the bowl.
Status: full cyle of flushing.
Data
| Kit | KIT-1 |
|---|---|
| Sampling rate (Hz) | 20000 |
| Length | 15 |
| Y RMS | 0.10 |
| Y STD | 0.10 |
| Y MEAN | 0.00 |
| Z RMS | 0.17 |
| Z STD | 0.16 |
| Z MEAN | 0.03 |
| X RMS | 0.09 |
| X STD | 0.09 |
| X MEAN | 0.01 |

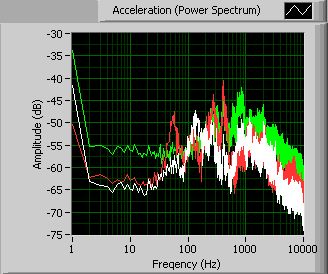

Images
Downloads
Waterflush bottom.zip3.8 MB
